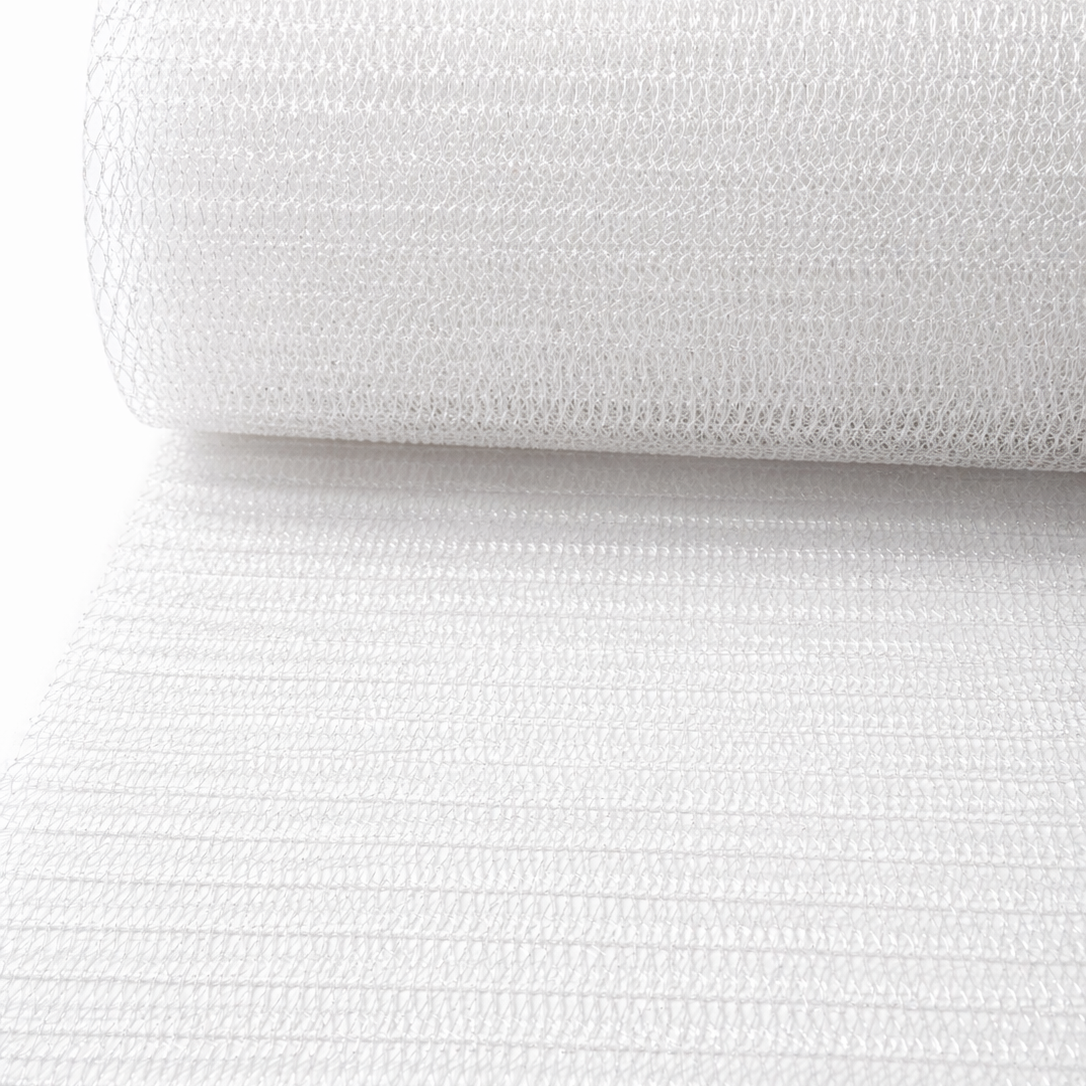

 | The resin distribution media is composed of a warp-knitted basic structure and monofilament created loops. The 2-dimensional flowing aid supports the vacuum infusion process (VIP), because it distributes the resin equally into the component part. Therefore, it can easily be combined with the resin distribution tapes SK2RIM180-2 in order to ensure a much more optimized resin distribution in the component.
The elasticity of this knitted fabric is very advantageous for the drapacity of the resin media. Because of the low weight per unit, low wastages of resin can be realized. SK2RIM180-1 is available with black tracer threads that indicate the roll direction of the mesh. It can also be used as a reusable ¬flexible / high stretch breather for vacuum bagging and consolidation. Flow rate of the resin in the mesh roll direction is about 18% faster compared to the resin flow at 90° to the mesh roll direction. Therefore, take note of the mesh direction when using.
|
